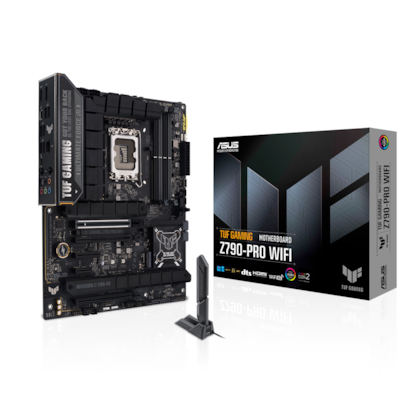

Placa Mãe Asus Tuf Gaming Z790-pro Wifi Ddr5 Atx Lga 1700 M.2 Bluetooth Display Port Hdmi Type-c 90mb1fj0-m0eay0

Marca:

ASUS

Modelo:

TUF GAMING Z790-PRO WIFI

CPU

Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z790 Chipset

Memory

4x DIMM slots, max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile II (AEMP II)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x DisplayPort**

1x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core™ Processors(14th & 13th & 12th )*

1x PCIe 5.0 x16 slot

Intel® Z790 Chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

1x PCIe 4.0 x4 slot

1x PCIe 3.0 x16 slot (supports x1 mode)

1x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).

To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors(14th & 13th & 12th )*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1x Intel® 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.3**

* Wi-Fi 6GHz frequency band regulatory may vary between countries.

** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)

1x USB 20Gbps port (1 x USB Type-C®)

3x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)

4x USB 5Gbps ports (4 x Type-A)

Front USB (Total 7 ports)

1x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

2x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

Impedance sense for front and rear headphone outputs

Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

Supports up to 32-Bit/192 kHz playback*"

Audio Features

Audio Shielding

Rear optical S/PDIF out port

Premium audio capacitors

Dedicated audio PCB layers

Audio Cover

Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports

1x USB 20Gbps port (1 x USB Type-C®)

3x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)

4x USB 5Gbps ports (4 x Type-A)

1x DisplayPort

1x HDMI™ port

1x Wi-Fi module

1x Intel® 2.5Gb Ethernet port

5x Audio jacks

1x Optical S/PDIF out port

Internal I/O Connectors

Fan and Cooling Related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

1x 4-pin AIO Pump header

4x 4-pin Chassis Fan headers

Power Related

1x 24-pin main power connector

2x 8-pin +12V power connectors

Storage Related

4x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 20Gbps connector (supports USB Type-C®)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

2x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3x Addressable Gen 2 headers

1x Aura RGB header

1x Clear CMOS header

1x COM port header

1x Front panel audio header (F_AUDIO)

1x 20-3 pin system panel header with chassis intrusion function

1x Thunderbolt™ (USB4®) header

Special Features

ASUS TUF PROTECTION

DIGI+ VRM (- Digital power design with DrMOS)

ESD Guards

TUF LANGuard

Overvoltage protection

SafeSlot

Stainless-steel back I/O

ASUS Q-Design

M.2 Q-Latch

PCIe Slot Q-Release

Q- Antenna

Q-DIMM

Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

Q-Slot

ASUS Thermal Solution

M.2 heatsink

VRM heatsink design

ASUS EZ DIY

CPU Socket lever protector

ProCool

Pre-mounted I/O shield

SafeDIMM

AURA Sync

Aura RGB header

Addressable Gen 2 headers

Front Panel USB 20Gbps with PD Fast Charge Support

Support: up to 30W fast charging and USB Wattage Watcher

Output: 5V/9V max. 3A, 12V max 2.5A

Compatible with PD3.0

Software Features

ASUS Exclusive Software

Armoury Crate

Aura Creator

Aura Sync

Fan Xpert 4 (with AI Cooling II)

Power Saving

Two-Way AI Noise Cancelation

AI Suite 3

Easy Optimization with AI Overclocking

TPU

DIGI+ VRM

Turbo app

PC Cleaner

MyAsus

USB Wattage Watcher

TUF GAMING CPU-Z

DTS Audio Processing

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

ASUS MyHotkey

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2x SATA 6Gb/s cables

Miscellaneous

1x ASUS WiFi Q-Antenna

1x TUF GAMING sticker

2x M.2 rubber packages

1x Screw package for M.2 SSD

Documentation

1x TUF certification card

1x Quick start guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
