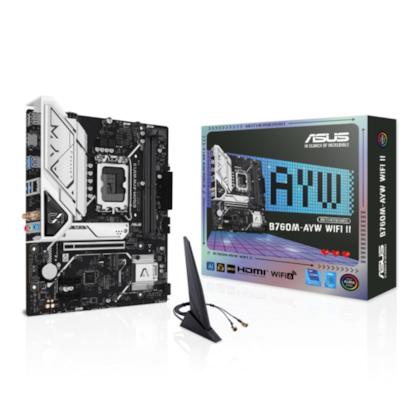

Placa Mãe Asus B760M-Ayw Wifi Ii Ddr5 Matx Lga 1700 M.2 Nvme Hdmi Usb 3.0 90Mb1Mh0-M0Eay0

Marca

Acer

Modelo

B760M-AYW WIFI II

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memória

2x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

1x HDMITM port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Slots de Expansão

Intel® Core™ Processors (14th & 13th & 12th Gen)*

1x PCIe 5.0 x16 slot

Intel® B760 Chipset

2x PCIe 4.0 x1 slots

To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Armazenamento

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Rede

1x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6 (802.11 ax)

Supports 2.4/5GHz frequency band

Bluetooth® v5.3*

*The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 6 ports)

4x USB 5Gbps ports (4 x Type-A)

2x USB 2.0 ports (2 x Type-A)

Front USB (Total 4 ports)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

1x USB 2.0 header supports 2 additional USB 2.0 ports

Áudio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Portas I/O no painel Traseiro

4x USB 5Gbps ports (4 x Type-A)

2x USB 2.0 ports (2 x Type-A)

1x HDMITM port

1x Wi-Fi Module

1x Realtek 2.5Gb Ethernet port

3x Audio jacks

Painel Interno

Fan and Cooling Related

1x 4-pin CPU Fan header

2x 4-pin Chassis Fan headers

Power Related

1x 24-pin Main Power connector

1x 8-pin +12V CPU Power connector

Storage Related

2x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

1x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous

3x Addressable RGB Gen 2 headers

1x Clear CMOS header

1x COM port header

1x Front Panel Audio header (F_AUDIO)

1x S/PDIF out header

1x Speaker header

1x SPI TPM header (14-1pin)

1x 10-1 pin Front Panel System header

Recursos Especiais

ASUS 5X PROTECTION III

DIGI+ VRM

LANGuard

Overvoltage protection

SafeSlot

Stainless-steel back I/O

ASUS Q-Design

M.2 Q-Latch

Q-DIMM

Q-LED Core

Q-Slot

ASUS EZ DIY

ProCool

ASUS Thermal Solution

M.2 heatsink

VRM heatsink design

Aura Sync

Addressable RGB Gen 2 headers

Recursos de Software

ASUS Exclusive Software

Armoury Crate

Aura Sync

Fan Xpert 2+

Two-Way AI Noise Cancellation

ASUS DriverHub

SUS CPU-Z

AI Suite 3

DIGI+ VRM

PC Cleaner

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.

BIOS

128 Mb  Flash ROM, UEFI AMI BIOS

Gerenciamento

WOL by PME, PXE

Acessórios

Cables

2x SATA 6Gb/s cables

Miscellaneous

1x ASUS Wi-Fi moving antenna

1x I/O Shield

1x M.2 Rubber Package

1x Screw package for M.2 SSD

Documentation

1x Quick start guide

Sistema Operacional

Windows® 11

Windows® 10 64-bit

Formato

micro-ATX Form Factor

9.6 inch x 8.3 inch (24.4cm x 21.1cm)
