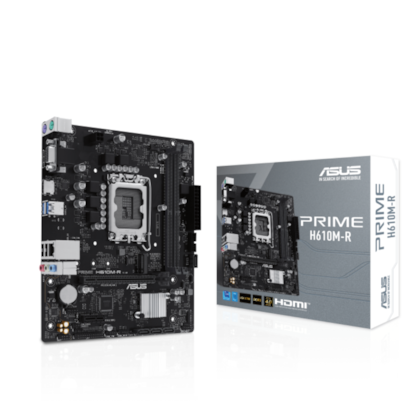

Placa Mãe Asus Prime H610M-R Ddr5 Lga 1700 Matx M.2 Nvme Hdmi Display Port Vga Usb 3.0 90Mb1Gl0-M0Eay0

Marca

ASUS

Modelo

PRIME H610M-R

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports up to Intel® 65W CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x DisplayPort**

1x VGA port

1x HDMITM port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)

1x PCIe 4.0 x16 slot

Intel® H610 Chipset

1x PCIe 3.0 x1 slot

To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

4x SATA 6Gb/s ports

Ethernet

1x Realtek 1Gb Ethernet

USB

Rear USB (Total 4 ports)

2x USB 3.2 Gen 1(5G) ports (2 x Type-A)

2x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports

2x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2x USB 3.2 Gen 1(5G) ports (2 x Type-A)

2x USB 2.0 ports (2 x Type-A)

1x DisplayPort

1x VGA port

1x HDMITM port

1x Realtek 1Gb Ethernet port

3x Audio jacks

1x PS/2 Keyboard (purple) port

1x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related

1x 4-pin CPU Fan header

1x 4-pin Chassis Fan header

Power related

1x 24-pin Main Power connector

1x 4-pin +12V Power conector

Storage related

1x M.2 slot (Key M)

4x SATA 6Gb/s ports

USB

1x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports

2x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1x Clear CMOS header

1x Chassis Intrusion header

1x COM Port header

1x Front Panel Audio header (AAFP)

1x LPT header

1x Speaker header

1x SPI TPM header (14-1 pin)

1x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

DIGI+ VRM

LANGuard

Overvoltage Protection

SafeSlot Core

Stainless-Steel Back I/O

ASUS Q-Design

Q-DIMM

Q-Slot

Q-LED Core

ASUS Thermal Solution

Aluminum heatsink design

Software Features

ASUS Exclusive Software

Armoury Crate

AI Suite 3

EPU

DIGI+ VRM

PC Cleaner

ASUS CPU-Z

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2x SATA 6Gb/s cables

Miscellaneous

1x I/O Shield

1x M.2 ANCHOR

Documentation

1x User guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor

8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
