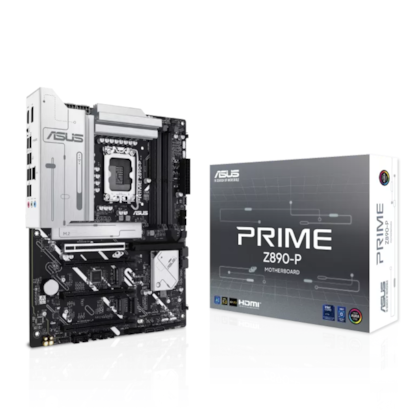

Placa Mãe Asus Prime Z890-P Ddr5 Lga 1851 Atx M.2 Nvme Display Port Hdmi Usb Tipo C 90Mb1I50-M0Eay0

Marca

Asus

Modelo

Asus Prime Z890-P

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z890 Chipset

Memory

4x DIMM slots, max. 256GB, DDR5

Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x DisplayPort**

1x HDMITM port***

1x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.

***** VGA resolution support depends on processors' or graphic cards' resolution.

****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel® Core™ Ultra Processors (Series 2)*

1x PCIe 5.0 x16 slot

Intel® Z890 Chipset

2x PCIe 4.0 x16 slots (support x4 mode)

1x PCIe 4.0 x16 slot (supports x1 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 4x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Ultra Processors (Series 2)*

M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

1x Realtek 2.5Gb Ethernet

ASUS LANGuard

USB

Rear USB (Total 8 ports)

1x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)

1x USB 10Gbps port (1 x Type-A)

2x USB 5Gbps ports (2 x Type-A)

4x USB 2.0 ports (4 x Type-A)**

Front USB (Total 9 ports)

1x USB 10Gbps connector (supports USB Type-C®)

2x USB 5Gbps headers support 4 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports**

* USB Type-C® power delivery output: max. 5V/3A

** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Supports: Jack-detection,

Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)

1x USB 10Gbps port (1 x Type-A)

2x USB 5Gbps ports (2 x Type-A)

4x USB 2.0 ports (4 x Type-A)

1x DisplayPort

1x HDMITM port

1x Realtek 2.5Gb Ethernet port

3x Audio jacks

1x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

1x 4-pin AIO Pump header

4x 4-pin Chassis Fan headers

Power related

1x 24-pin Main Power connector

2x 8-pin +12V CPU Power connector

Storage related

4x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 10Gbps connector (supports USB Type-C®)

2x USB 5Gbps headers support 4 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3x Addressable Gen2 headers

1x Aura RGB header

1x Clear CMOS header

1x COM Port header

1x Front Panel Audio header (F_AUDIO)

1x S/PDIF Out header

1x SPI TPM header (14-1pin)

1x 10-1 pin Front PanelSystem header

1x Thunderbolt™ (USB4®) header

Fan and Cooling related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

1x 4-pin AIO Pump header

4x 4-pin Chassis Fan headers

Power related

1x 24-pin Main Power connector

2x 8-pin +12V CPU Power connector

Storage related

4x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 10Gbps connector (supports USB Type-C®)

2x USB 5Gbps headers support 4 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3x Addressable Gen2 headers

1x Aura RGB header

1x Clear CMOS header

1x COM Port header

1x Front Panel Audio header (F_AUDIO)

1x S/PDIF Out header

1x SPI TPM header (14-1pin)

1x 10-1 pin Front Panel System header

1x Thunderbolt™ (USB4®) header

Special Features

ASUS 5X PROTECTION III

DIGI+ VRM (- Digital power design with DrMOS)

LANGuard

Overvoltage Protection

SafeSlot

Stainless-Steel Back I/O

ASUS Q-Design

M.2 Q-Latch

PCIe Slot Q-Release

Q-Dashboard

Q-DIMM

Q-LED Core

Q-Slot

ASUS Thermal Solution

M.2 heatsink

VRM heatsink design

ASUS EZ DIY

BIOS FlashBack™ button

BIOS FlashBack™ LED

ProCool

Pre-mounted I/O shield

Aura Sync

Aura RGB header

Addressable Gen2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

Aura Creator

Aura Sync

Fan Xpert 4 (with AI Cooling II)

Power Saving

ASUS DriverHub

ASUS CPU-Z

TurboV Core

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash

ASUS UEFI BIOS EZ Mode

ASUS MyHotkey

NPU Boost (Intel K-series Processors only)

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2x SATA 6Gb/s cables

Miscellaneous

1x M.2 rubber package

2x Screw packages for M.2 SSD

Documentation

1x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor

ATX Form Factor

12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
