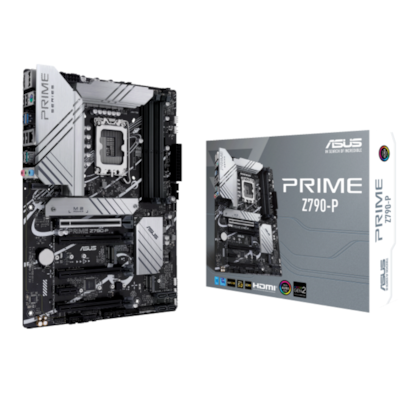

Placa Mãe Asus Prime Z790-p Ddr5 Lga 1700 M.2 Hdmi Display Port Tipo C Usb 3.2 90mb1ck0-m1eay0

Marca:

ASUS

Modelo

PRIME Z790-P

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z790 Chipset

Memória

4x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

1x DisplayPort**

1x HDMI® port***

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Slots de Expansão

Intel® Core™ Processors (14th & 13th & 12th Gen)*

1x PCIe 5.0 x16 slot

Intel® Z790 Chipset

3x PCIe 4.0 x16 slots (support x4 mode)

1x PCIe 3.0 x1 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Armazenamento

Total supports 3x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen)*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

4x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Rede

1x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Vertical M.2 slot only (Key E, CNVi & PCIe)*

*Wi-Fi module is sold separately.

USB

Rear USB (Total 8 ports)

1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1x USB 3.2 Gen 2 port (1 x Type-A)

2x USB 3.2 Gen 1 ports (2 x Type-A)

4x USB 2.0 ports (4 x Type-A)

Front USB (Total 9 ports)

1x USB 3.2 Gen 2 connector (supports USB Type-C®)

2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Áudio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Portas I/O no painel Traseiro

1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1x USB 3.2 Gen 2 port (1 x Type-A)

2x USB 3.2 Gen 1 ports (2 x Type-A)

4x USB 2.0 ports (4 x Type-A)

1x DisplayPort

1x HDMI® port

1x Vertical M.2 slot (Key E)

1x Realtek 2.5Gb Ethernet port

3x Audio jacks

1x PS/2 Keyboard/Mouse combo port

Painel Interno

Fan and Cooling related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

1x 4-pin AIO Pump header

3x 4-pin Chassis Fan headers

Power related

1x 24-pin Main Power connector

1x 8-pin +12V Power connector

1x 4-pin +12V Power conector

Storage related

3x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 3.2 Gen 2 connector (supports USB Type-C®)

2x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3x Addressable Gen 2 headers

2x Aura RGB headers

1x Clear CMOS header

1x COM Port header

1x Front Panel Audio header (AAFP)

1x S/PDIF Out header

1x SPI TPM header (14-1pin)

1x 20-5pin System Panel header

1x Thunderbolt™ (USB4®) Header

Recursos Especiais

ASUS 5X PROTECTION III

DIGI+ VRM (- Digital power design with DrMOS)

LANGuard

Overvoltage Protection

SafeSlot Core+

Stainless-Steel Back I/O

ASUS Q-Design

Q-DIMM

Q-Slot

Q-LED Core

ASUS Thermal Solution

Flexible M.2 heatsink

VRM heatsink design

ASUS EZ DIY

ProCool

Aura Sync

Aura RGB headers

Addressable Gen 2 headers

Recursos de Software

ASUS Exclusive Software

Armoury Crate

Aura Sync

Fan Xpert 4 (with AI Cooling II)

Power Saving

AI Suite 3

TurboV EVO

PC Cleaner

DIGI+ VRM

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Gerenciamento

WOL by PME, PXE

Acessórios

Cables

2x SATA 6Gb/s cables

Miscellaneous

1x I/O Shield

1x M.2 Rubber Package

2x Screw packages for M.2 SSD

Documentation

1x User guide

Sistema Operacional

Windows® 11, Windows® 10 64-bit

Formato

ATX Form Factor

12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
