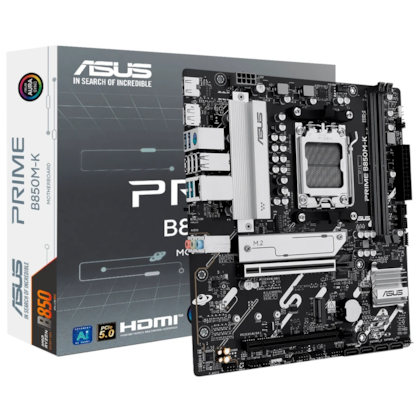

Placa Mãe Asus Prime B850m-k Ddr5 Am5 Matx M.2 Nvme Display Port Hdmi Usb Tipo C 90mb1lv0-m0eay0

Marca:

ASUS

Modelo:

PRIME B850M-K

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD B850 Chipset

Memory

2x DIMM slots, max. 128GB, DDR5 Supports up to

8200+MT/s(OC) with Ryzen™ 9000 Series Processors,

9600+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x DisplayPort**

1x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

1x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

1x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B850 Chipset

1x PCIe 4.0 x16 slot (support x4 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported

Storage

Supports 2x M.2 slots and 4x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset

4x SATA 6Gb/s ports

* Specifications vary by CPU types.

AMD RAIDXpert2 Technology

Ryzen™ 9000 Series Processors: RAID 0/1/5/10

Ryzen™ 8000 Series Processors: RAID 0/1

Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet

1x Realtek 2.5Gb Ethernet

ASUS LANGuard

USB

Rear USB (Total 8 ports)

2x USB 10Gbps ports (2 x Type-A)

2x USB 5Gbps ports (2 x Type-A)

4x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1x USB 5Gbps connector (supports USB Type-C®)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2x USB 10Gbps ports (2 x Type-A)

2x USB 5Gbps ports (2 x Type-A)

4x USB 2.0 ports (4 x Type-A)

1x DisplayPort

1x HDMI™ port

1x Realtek 2.5Gb Ethernet port

3x Audio jacks

1x BIOS FlashBack™ button

1x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling Related

1x 4-pin CPU Fan header

3x 4-pin Chassis Fan headers

Power Related

1x 24-pin Main Power connector

1x 8-pin +12V CPU Power conector

Storage Related

2x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 5Gbps connector (supports USB Type-C® )

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3x Addressable RGB Gen 2 headers

1x Clear CMOS header

1x COM Port header

1x Front Panel Audio header (F_AUDIO)

1x S/PDIF Out header

1x SPI TPM header (14-1 pin)

1x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

DIGI+ VRM

LANGuard

Overvoltage protection

SafeSlot

Stainless-steel back I/O

ASUS Q-Design

Q-Dashboard

Q-DIMM

Q-LED Core

Q-Slot

ASUS Thermal Solution

M.2 heatsink

VRM heatsink design

ASUS EZ DIY

BIOS FlashBack™ button

BIOS FlashBack™ LED

SafeSlot

Aura Sync

Addressable RGB Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

Aura Creator

Aura Sync

Fan Xpert 2+

ASUS AI Advisor

ASUS DriverHub

TurboV Core

ASUS CPU-Z

Adobe Creative Cloud (Free Trial)

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

ASUS MyHotkey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2x SATA 6Gb/s cables

Miscellaneous

1x I/O Shield

1x M.2 rubber package

1x Screw package for M.2 SSD

Documentation

1x Quick start guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

micro-ATX Form Factor

9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
