Marca:
ASUS
Modelo:
H510M-F R3.0
Modelo

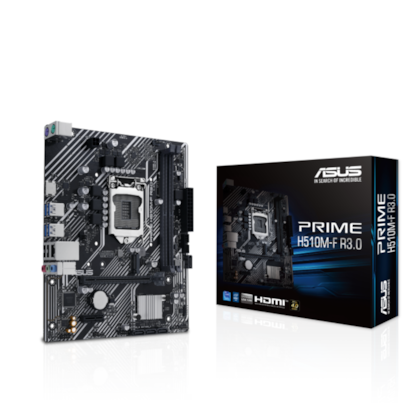

PRIME H510M-F R3.0
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports up to Intel® 65W CPU
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H470 Chipset
Memória
2x DIMM slots, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* 11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Gráficos
1x HDMI™ port**
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Slots de Expansão
Intel® 11th & 10th Gen Processors
1x PCIe 4.0/3.0 x16 slot
Intel® 11th Gen processors support PCIe 4.0 x16
Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H470 Chipset
1x PCIe 3.0 x1 slot
Armazenamento
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H470 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4x SATA 6Gb/s ports
Rede
1x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)
4x USB 5Gbps ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
1x USB 2.0 header supports 2 additional USB 2.0 ports
Áudio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Portas I/O no painel Traseiro
4x USB 5Gbps ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
1x HDMI™ port
1x Realtek 1Gb Ethernet port
3x Audio jacks
1x PS/2 Keyboard (purple) port
1x PS/2 Mouse (green) port
Painel Interno
Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin Chassis Fan header
Power related
1x 24-pin Main Power connector
1x 4-pin +12V Power conector
Storage related
1x M.2 slot (Key M)
4x SATA 6Gb/s ports
USB
1x USB 5Gbps header supports 2 additional 5Gbps ports
1x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1x Clear CMOS header
1x Front Panel Audio header (F_AUDIO)
1x Speaker header
1x SPI TPM header (14-1 pin)
1x 10-1 pin System Panel header
Recursos Especiais
ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core
Stainless-Steel Back I/O
ASUS Q-Design
Q-DIMM
Q-LED Core
Q-Slot
ASUS Thermal Solution
Aluminum heatsink design
Recursos de Software
ASUS Exclusive Software
Armoury Crate
AI Suite 3
Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
EZ update
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Gerenciamento
WOL by PME, PXE
Acessórios
Cables
2x SATA 6Gb/s cables
Miscellaneous
1x I/O Shield
1x M.2 Anchor
Documentation
1x Quick start guide
Sistema Operacional
Windows® 10 64-bit
Formato
mATX Form Factor
8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
