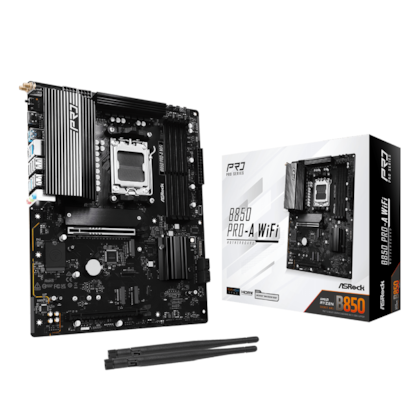

Placa Mãe Asrock B850 Pro-wifi Ddr5 Am5 Atx M.2 Nvme Hdmi Usb Tipo C 90-mxbqn0-a0uayaz

Marca

Asus

Modelo

B850 PRO-A WIFI

Unique Feature

Superb Productivity

PCIe Gen5 (Graphics, M.2)

Dual Channel DDR5

Rock-Solid Durability

14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC

Ultrafast Connectivity

2.5G LAN, 802.11axe Wi-Fi 6E Module

EZ Update

BIOS Flashback Button

ASRock Auto Driver Installer

EZ Troubleshooter

ASRock Post Status Checker

CPU

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

Chipset

AMD B850

Memory

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)

Max. capacity of system memory: 256GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

1x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Wireless LAN

802.11axe Wi-Fi 6E Module

Supports IEEE 802.11a/b/g/n/ac/ax/axe

Supports Dual-Band 2x2 with extended 6GHz band* support

2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth 5.2

Supports MU-MIMO

*The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.

A 6GHz compatible router is required for 6E functionality.

Slots

CPU:

1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

1x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*

1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

15µ Gold Contact in VGA PCIe Slot (PCIE1)

* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.

If M2_3 is occupied, PCIE2 will be disabled.

Supports NVMe SSD as boot disks

Storage

CPU:

1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

1x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

1x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

1x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*

2x SATA3 6.0 Gb/s Connectors

ASMedia ASM1061:

- 2 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks

M2_1 is the first priority for M.2 installation.

M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.

M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.

If M2_3 is occupied, PCIE2 will be disabled.

If SATA3_1 or SATA3_2 is occupied, M2_4 will downgrade to Gen3x2 mode.

RAID

Supports RAID 0 and RAID 1 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

CPU:

1x USB 3.2 Gen2 Type-C (Rear)

1x USB 3.2 Gen1 Type-C (Rear)

2x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))

Chipset:

1x USB 3.2 Gen2x2 Type-C (Front)

4x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front)

9x USB 2.0 (6 Rear, 3 Front)

* All USB ports support ESD Protection

Connector

1x SPI TPM Header

1x Power LED and Speaker Header

1x RGB LED Header*

3x Addressable LED Headers**

2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***

4x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***

1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

1x 24 pin ATX Power Connector

2x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1x Front Panel Audio Connector

2x USB 2.0 Headers (Support 3 USB 2.0 ports)

1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

* Supports in total up to 12V/3A, 36W LED Strip

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).

CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

2x Antenna Ports

1x HDMI Port

1x USB 3.2 Gen2 Type-C Port (10 Gb/s)

1x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a)

4x USB 3.2 Gen1 Type-A Ports

6x USB 2.0 Ports

1x RJ-45 LAN Port

1x BIOS Flashback Button

HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock Motherboard Utility (A-Tuning)

ASRock Dragon 2.5G LAN Software

ASRock Polychrome SYNC*

UEFI

ASRock EZ Mode

ASRock Full HD UEFI

ASRock Auto Driver Installer

ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

1 x I/O Shield

2 x SATA Data Cables

2 x ASRock WiFi 2.4/5/6 GHz Antennas

Form Factor

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

8 Layer PCB

OS

Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)
