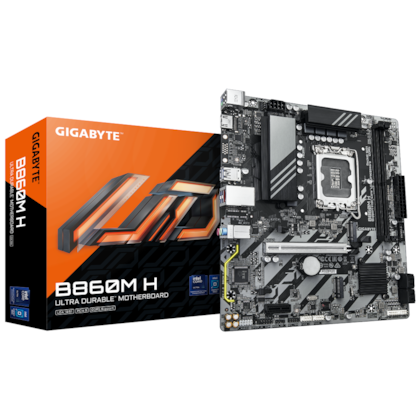

Placa Mãe Gigabyte B860m H Ddr5 Lga 1851 Matx M.2 Nvme Hdmi Rev 1.0

Marca:

GIGABYTE

Modelo:

B860M H

CPU

LGA1851 socket:

Support for Intel® Core™ Ultra Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset

Intel® B860 Express Chipset

Memória

Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules

2x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Gráficos Onboard

Integrated Graphics Processor-Intel® HD Graphics support:

1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Áudio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Slots de Expansão

CPU:

1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

1x PCI Express x1 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

Interface de Armazenamento

Chipset:

2x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)

4x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

6x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

2x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4x USB 2.0/1.1 ports available through the internal USB headers

Conectores Internos I/O

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan header

1x CPU fan/water cooling pump header

1x system fan/water cooling pump header

2x addressable RGB Gen2 LED strip headers

2x M.2 Socket 3 connectors

4x SATA 6Gb/s connectors

1x front panel header

1x front panel audio header

1x S/PDIF Out header

1x USB 3.2 Gen 1 header

2x USB 2.0/1.1 headers

1x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1x serial port header

1x Clear CMOS jumper

Conectores Painel Traseiro

2x USB 2.0/1.1 ports

1x PS/2 keyboard/mouse port

1x HDMI port*

4x USB 3.2 Gen 1 ports

1x RJ-45 port

3x audio jacks

* Actual support may vary by CPU.

Controlador I/O

iTE® I/O Controller Chip

Monitoramento H/W

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Exclusivas

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Smart Backup

Pacote de Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Sistema Operacional

Support for Windows 11 64-bit

Support for Windows 10 64-bit

* The Intel® NPU driver is only supported on Windows 11.

Form Factor

Micro ATX Form Factor; 24.4cm x 21.5cm
