Marca

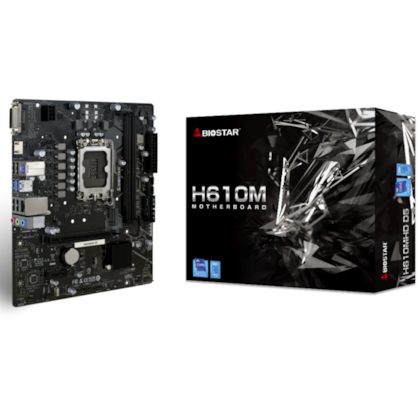

BIOSTAR
Modelo
H610MHD D5
Chipset
Intel H610
CPU SUPPORT
Support for 12th/13th/14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
12th Gen Intel Core CPU
Supports Dual Channel DDR5 - 4800 MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Memory
14th/13th Gen Intel Core CPU
Supports Dual Channel DDR5 - 5600 MT/s**, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Memory
2x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Support Intel® Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
** The actual frequency is may depend on CPU.
INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP
STORAGE
Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset
1x M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA):
Supports M.2 Type 2240 /2260 /2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD & SATA SSD
4x SATA III Connector (6Gb/s)
* Specifications vary by CPU types
LAN
Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC
Realtek ALC897
7.1 Channels, High Definition Audio
USB
4x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT
Intel 12th/13th/14th Processors
1x PCIe 4.0 x16 Slot
Intel H610 Chipset
1x PCIe 3.0 x1 Slot
* Specifications vary by CPU types
REAR I/O
1x PS/2 Keyboard/ Mouse Port
1x HDMI® Port
1x DVI Port
2x USB 3.2 (Gen1) ports
4x USB 2.0 ports
1x LAN port
3x Audio Jack
INTERNAL I/O
4x SATA III Connectors (6Gb/s)
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Speaker Header
1x Clear CMOS Header
1x COM Port Header
1x TPM Header
H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION
Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
OS SUPPORT
Supports Windows 10 (64bit) / 11(64bit)
Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE
BullGuard
ACCESSORIES
2x SATA Cable
1x I/O Shield
1x DVD Driver
1x Quick Guide
1x M.2 Anchor
